Wiedemann A-15 NS, S-25 NS Clamp Parts

Wiedemann A-15 NS, S-25 NS (S/N 417 or After) Clamp Parts

Dwg No.	Part No.	Description	Price
00	MH3ACO	Complete Assembly
00	MH3RJA	Replaceable Jaw Pack (Incl. #26,27,28,32,45)
01	MH3ACP-01	Retainer
03	MH3ACP-03	Retainer
04	MH5ACP-04	Spring
05	MHSCS0616	Screw, CS Pkg of 10
06	MH3ACP-06	Pointer (No Longer Available)
07	MHSCS0508	Screw CS, Pkg, of 10
08	MH3ACP-08	T-Bar
10	MHSCS0516	Screw CS, Pkg. of 10
11	MHHN05	Hex Nut Pkg. of 10
12	MHSS0516	Screw SS, Pkg. of 10
13	MH3ACP-13	Side Plate
14	MH3ACP-14	Cam Spacer (No Longer Available)
14	MH3ACP-14A	Spacer (No Longer Available)
15	MHSBS0602	Screw BH, Pkg. of 10
16	MH3ACP-16	Cam (No Longer Available)
17	MH3ACP-17	Guide, RH
18	MHSCS0856	Cap Screw
19	MH3ACP-19	Slide
20	MH3ACP-20	Bottom Plate
21	MHSFCS0612	Screw, FH Pkg of 10
22	MH3ACP-22	Guide, LH
23	MH3ACP-05	Plunger
25	MHSFS0512	Screw, FH Pkg of 10
26	MH3ALJ	Lower Jaw/Knurl (Incl. Screws)
26	MH3CLJ	Lower Jaw/Carbide Style (Includes Screws)
27	MH3ACP-27	Dowel
28	MH3AUJ	Upper Jaw
29	MH3ACP-29	Air Cylinder
30	MH3ACP-24	Dowel
32	MH3ACP-32	Disc (No Longer Available)
35	MH3ACP-35	Pin
36	MH3ACP-36	Roll Pin Pkg. of 10
37	MHSSS0508	Screw SS, Pkg. of 10
38	MH3ACP-38	Air Hose
45	MH3APA	Pivot Arm
45	MH3RPA	Replaceable Leg Pivot Arm
46	MH3RCP-46	Body
47	MH3RCP-47	Leg, RH
48	MH3RCP-48	Leg, LH

*Prices Subject to change without notice 11/11/2013

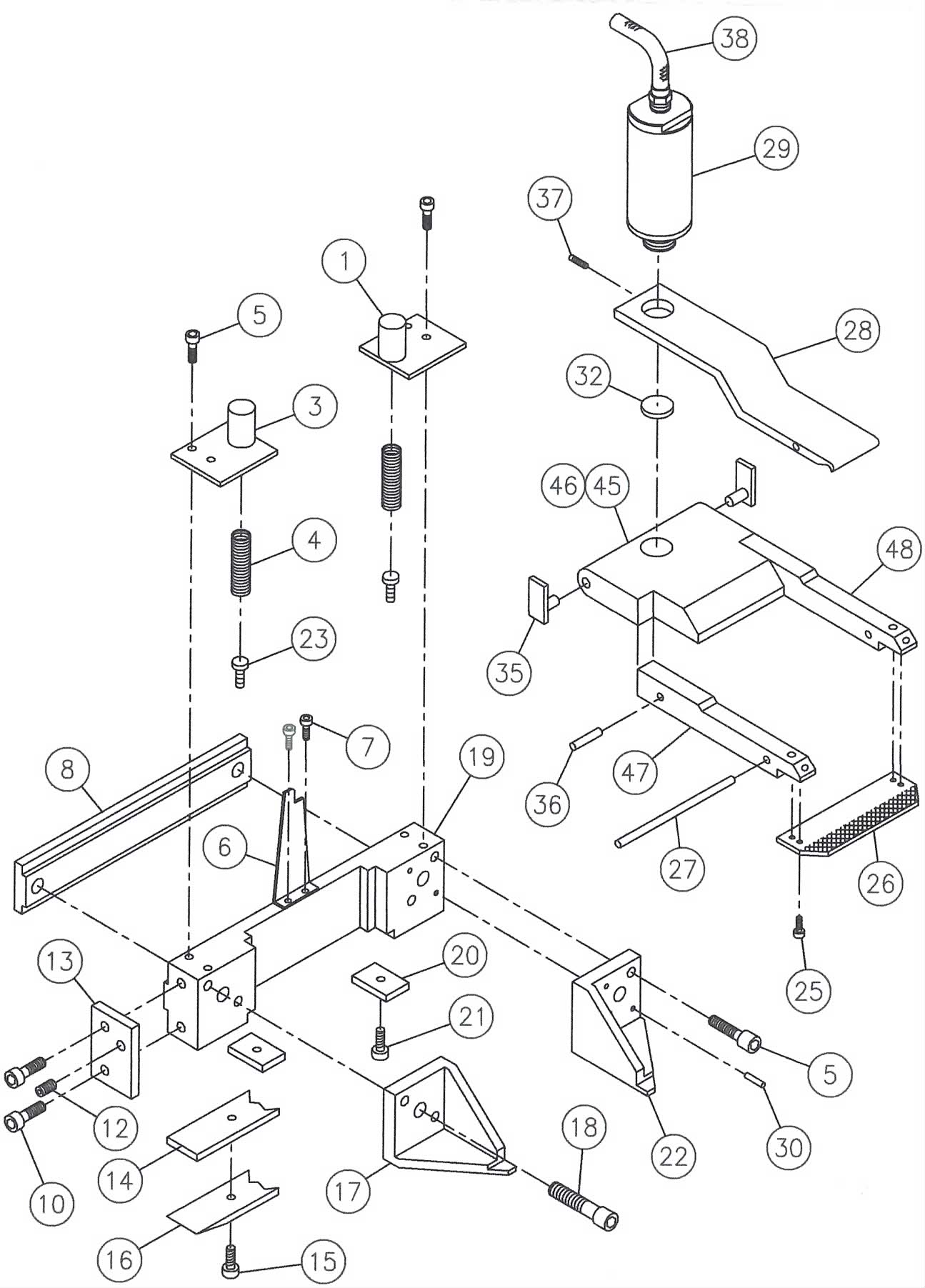

A-15 NS, S-25 NS (SN 417 or After)
