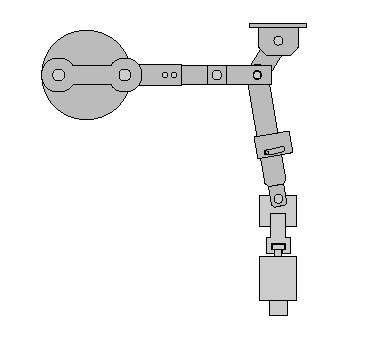

Servo Motor Driven Ram
|
MURATEC Wiedemann, was the first in the world, to introduce the new servo motor ram drive concept in punch press technology back in 1994. This system has brought sheet metal
processing to speeds thought unattainable. The MOTORUM series is popular
for high speed, high precision and quiet processing. This leading edge technology
gives you the reliability and speed of a mechanical ram with the flexibility
and control previously limited to hydraulics.
Energy-efficient Operation, Low Running Costs In the MOTORUM Series the ram servo motor consumes power only during the punching process, thus reducing running costs drastically.
|

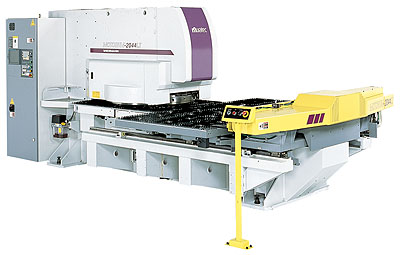

| Motorum 2044ez | Motorum 2044LT | Motorum 2048LT | |
| Punching capacity (tons) | 22 | 22 | 22 |
| Number of Station | 18 or 22 | 44 / 54 | 44 / 54 |
| Max. punching thickness | .250" | .250" | .250" |
| Max. sheet size
(Y x X) (without re-positioning) |
49.21" x 49.21" | 49.21" x 49.21" | 98.43" x 49.21" |
| Punching Hit Rate on 1" Centers (HPM) | 220 | 350/280 (X & Y) | 350/280 (X & Y) |
| Hit Rate Nibbling (HPM) | 600 | 800 | 700 |
| Punching accuracy | +/-.004" | +/-.004" | +/-.004" |
|
Wiedemann's Centrum series and Magnum series standard model punch presses are equipped with features that include Wiedemann tooling, 3-box frame and a partitioned table structure for high rigidity and high precision processing. |
| CENTRUM
2500 |
CENTRUM
3000 |
CENTRUM
3500 |
MAGNUM
5000 |
|
| Punching capacity (tons) | 22 | 33 | 33 | 45 |
| Max. punching thickness | .250" | .250" | .250" | .375" |
| Max. sheet size
(Y x X) (without re-positioning) |
49.25" x 49.25" | 78.74" x 49.20" | 60.04" x 78.74" | 74.00" x 63.80" |
| Punching Hit Rate on 1" Centers
(HPM) |
250 | 220 | 220 | 200 |
| Hit Rate Nibbling (HPM) | 410 | 475 | 475 | 450 |
| Punching accuracy | +/- .004" | +/- .004" | +/- .004" | +/- .005 |
|
The Muratec Wiedemann VECTRUM series punch presses are provided with a high-speed, stroke adjustable servo controlled hydraulic ram, which produces outstanding quality parts. |
| Vectrum 3046 Alpha | Vectrum 3056 Alpha | Vectrum 5058 | |
| Punching capacity (tons) | 33 | 33 | 50 |
| Max. punching thickness | .250" | .250" | .375" |
| Max. sheet size
(Y x X) (without re-positioning) |
49.21" x 78.74" | 60.04" x 78.74" | 98.00" x 60.00" |
| Punching Hit Rate on 1" Centers
(HPM) |
400 | 400 | 240 |
| Hit Rate Nibbling (HPM) | 1000 | 1000 | 360 |
| Punching accuracy | +/-.003" | +/-.003" | +/- .004 |
|
The hybrid series can carry out high precision and high speed punching, and high quality and flexible laser process cutting, all on a single unit. The merits of combining functions within a single unit brings you a variety of value-added benefits such as highly efficient precision high quality, productivity, and cost effectiveness at both the production and trial production stages. |
| Centrum 3000 Hybrid | Centrum 3500 Hybrid | Magnum 5000 Hybrid | Vectrum 3046 Hybrid | Vectrum 5058 Hybrid | |||
| Punching Capacity (Tons) | 33 | 33 | 50 | 33 | 50 | ||
| Max. Sheet Thickness | |||||||
| Punching | .250" | .250" | .394" | .250" | .394" | ||
| Laser cutting SPHC (MS) | .354" | .354" | .472" | .354" | .472" | ||
| Laser Cutting SUS (SS) | .236" | .236" | .354" | .236" | .354" | ||
| Max. Sheet Size (X x Y) without reposition | 49" x 79" | 60" x 79" | 60" x 98" | 49" x 79" | 60" x 98" | ||
| Rated Laser Output | 1500 | 1500 | 2000 | 1500 | 2000 | ||
|
MURATEC's

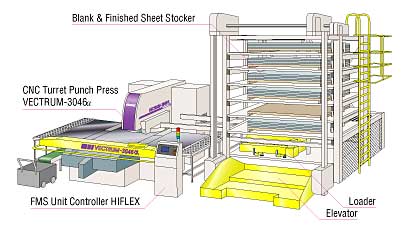

Flexible Manufacturing Solutions
are designed to meet your manufacturing requirements MURATEC, a pioneer in machinery for sheet metal processing, cell automation and customized FMS with worldwide experience and know-how accumulated over 30 years, manufactures automation solutions to suit your specific requirements. |
