Harrison Industrial Equipment Co., Inc.

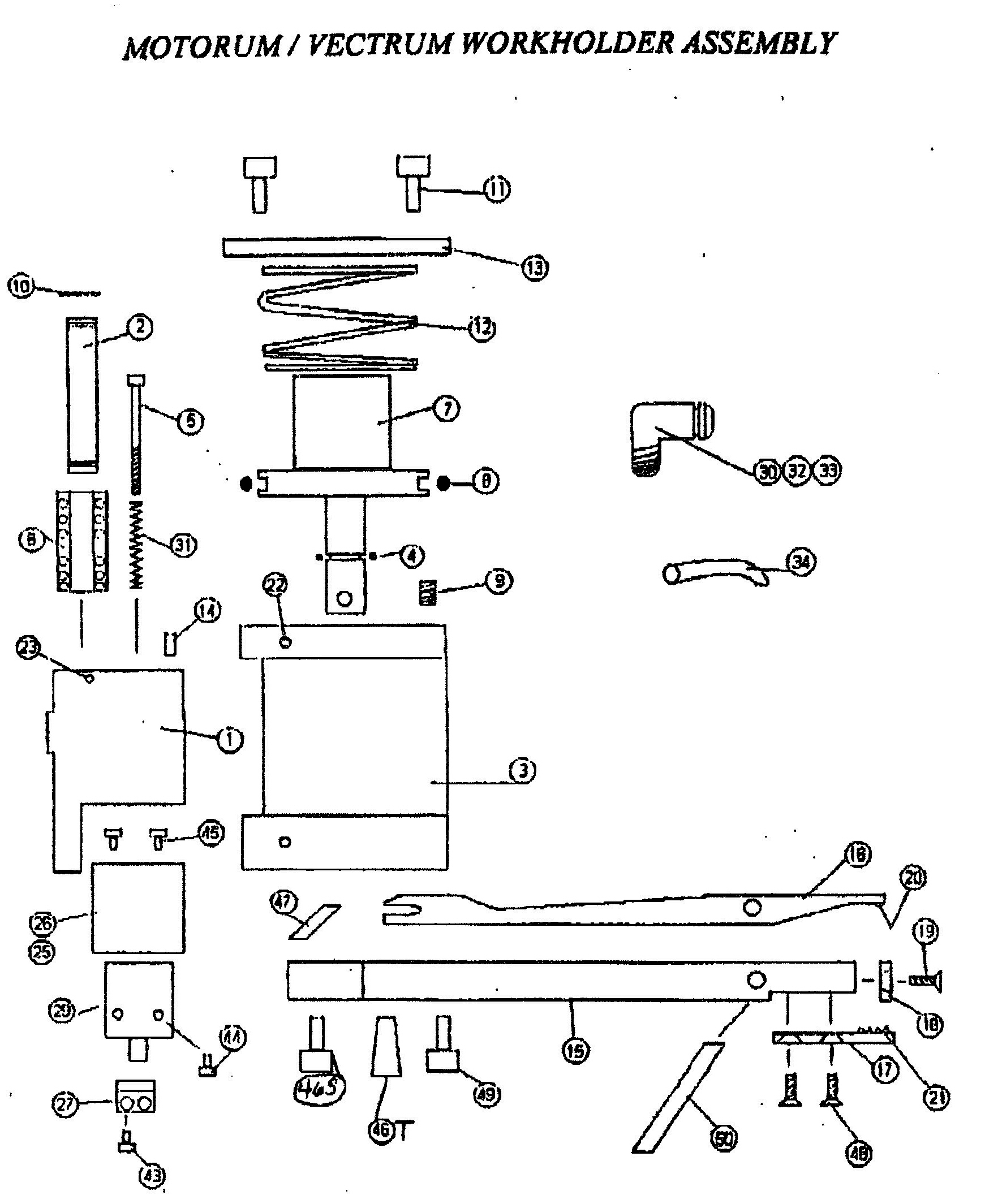

Motorum / Vectrum Series Workholder Assembly Parts

**Made in the USA!**

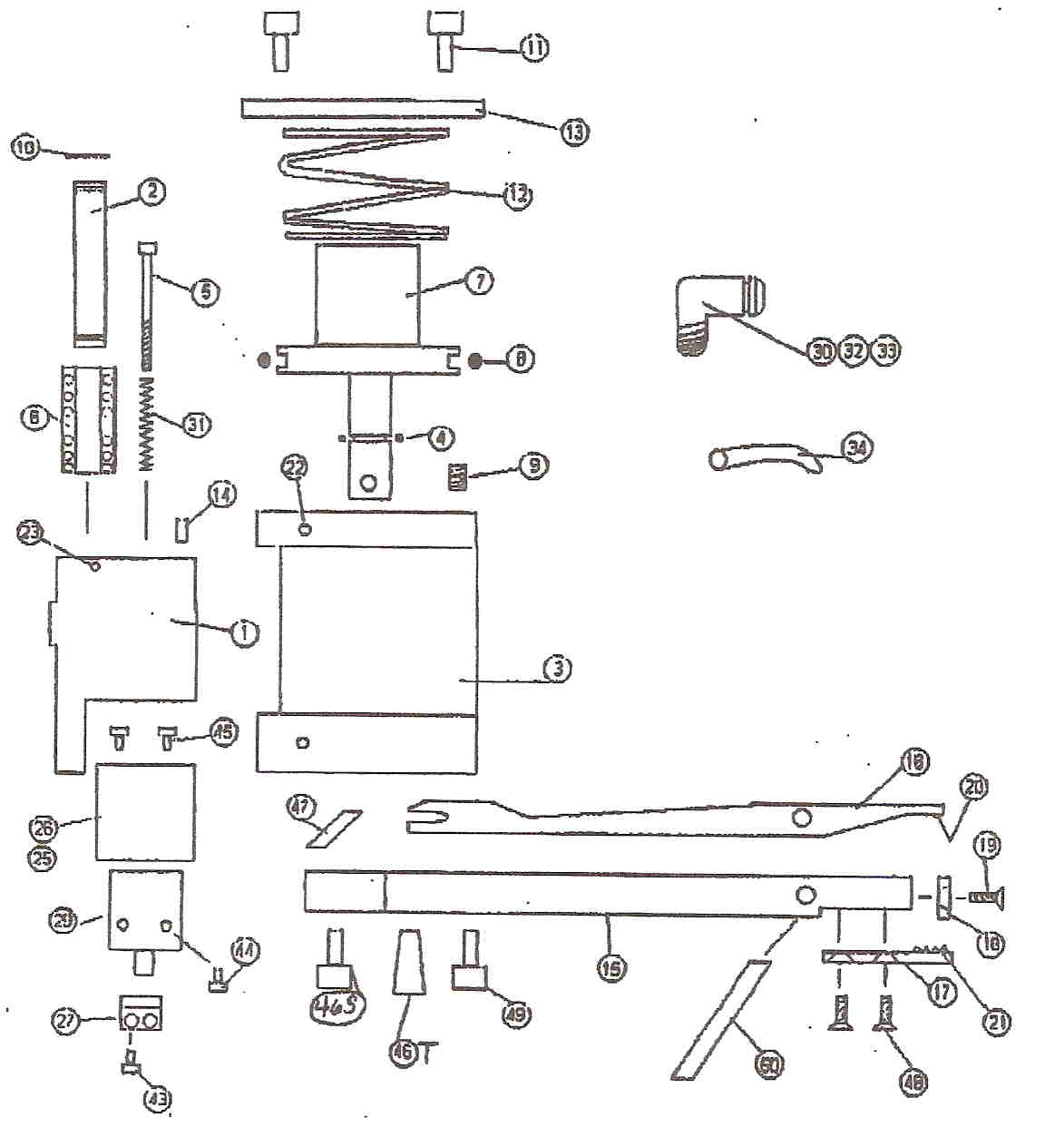

  Vectrum / Motorum P37-2310-000



Item # Part # Description Price
* P37-2310-CBA Clamp Base Assembly With Knurled Lower Jaw $520.00
* P37-2310-CBAC Clamp Base With Carbide Lower Jaw $536.50
1 P37-2310-001 Slider $302.50
2 P37-2310-002 Stroke Shaft $65.00
3 P37-2310-003 Cylinder Body $312.50
4 P37-2310-004 O-Ring $0.55
5 P37-2310-005 Socket Head Cap Screw $1.50
6 P37-2310-006 Bearing $65.00
7 P37-2310-007 Piston $264.00
8 P37-2310-008 O-Ring $1.65
9 P37-2310-009 Socket Head Cap Screw $0.35
10 P37-2310-010 Snap Ring $1.10
11 P37-2310-011 Socket Head Cap Screw $0.45
12 P37-2310-012 Spring $7.50
13 P37-2310-013 Cylinder Cap / Retainer $55.00
14 P37-2310-014 Cushion $1.00
15 P37-2310-015 Pivot Arm $297.50
16 P37-2310-016 Upper Jaw With Carbide $190.00
17 P37-2310-17 Lower Jaw Knurled $25.75
17a P37-2310-017c Lower Jaw W/Carbide Insert $34.00
18 P37-2310-018 Pad (Stopper Plate) $8.25
19 P37-2310-018a Flat Head Socket Screw $0.45
20 P37-2310-020 Carbide Insert (Chisel Pt.) $3.90
21 P37-2310-021 Carbide Insert (Knurled) $8.50
22 P37-2310-022 Socket Set Screw $0.45
23 P37-2310-023 Socket Set Screw $0.45
25 P37-2310-025 Cover - Right P.O.R.
26 P37-2310-026 Cover - Left P.O.R.
27 P37-2310-027 Pusher $8.00
29 P37-2310-029 Cylinder P.O.R.
30 P37-2310-030 Elbow (Joint) $6.50
31 P37-2310-031 Hanging Spring $6.45
32 P37-2310-030 Elbow $6.50
33 P37-2310-033 Elbow $6.50
34 P37-2310-034 Air Line (Per Foot) $1.00
43 P37-2310-043 Socket Head Cap Screw $0.45
44 P37-2310-044 Socket Head Cap Screw $0.45
45 P37-2310-045 Socket Head Cap Screw $0.45
46T 9999-6000 Pull Dowel - Tapered $14.00
46S 9999-6001 Pull Dowel - Straight $8.00
47 P37-2310-047 Dowel Pin (6mm x 32mm) $2.00
48 P37-2310-048 Socket Flat Head Screw $0.40
49 P37-2310-049 Socket Head Cap Screw $0.40
50 806019/6663-1033 Dowel Pin (6mm x 80mm) $2.25
* P37-2310-000 Complete Workholder Assy. (Does not include Mounting Plate) $2,700.00
* P37-2310-0DJ Double Jaw Workholder W/Mounting Plate $3,893.75

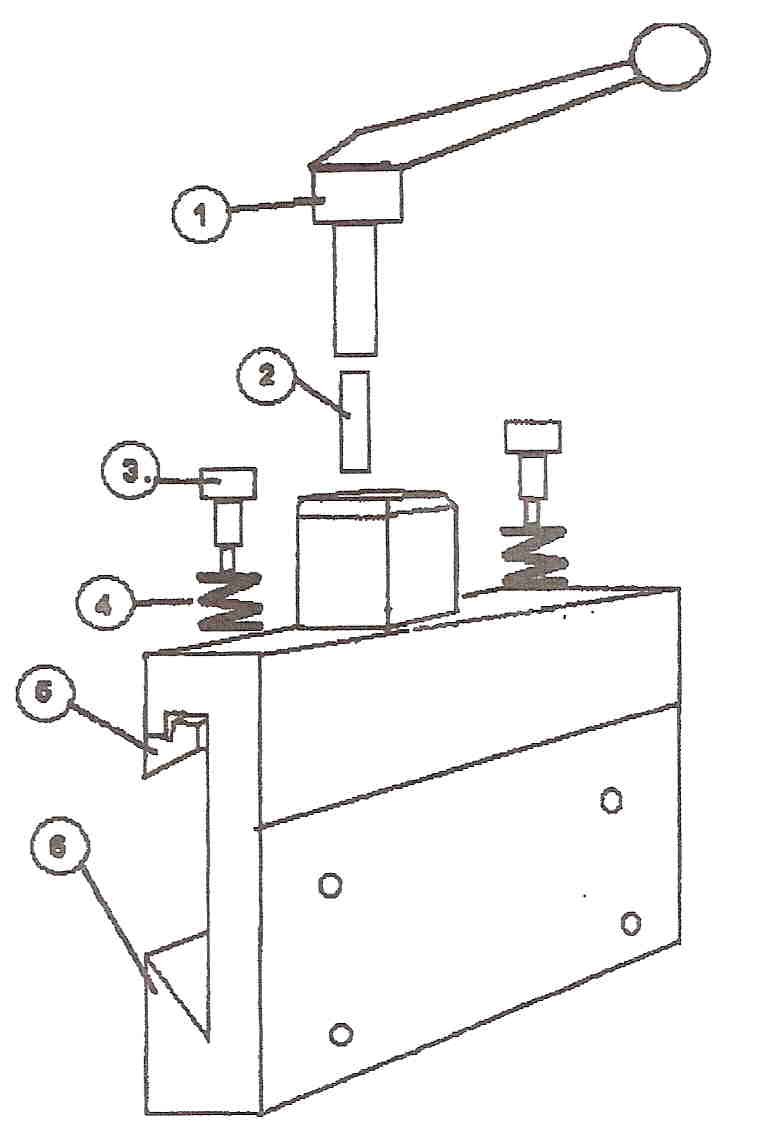

Motorum / Vectrum Series Mounting Plate

Vectrum / Motorum Mounting

1 P37-210-022 Clamp Lever $25.00
2 P37-2210-074 Push Rod $2.75
3 P37-2210-073 Stripper Bolt $4.15 ea.
4 P37-2210-075 Release Spring $2.00 ea.
5 P37-2210-072 Clamp Bar $60.00
6 P37-2210-071 Mounting Plate $231.00
7 P37-2210-071A Mounting Plate Assembly $32.55

Wiedemann Centrum Series Workholder Assembly

(Picture on the way)

**Made in the USA!**

Item # Part# Description Price
* 750632-5 OEM Workholder Assembly (OEM Design C-1000 W/O safety cam) $1237.50
* C-1000 Stubby Workholder Assembly $575.00
* C-1002 Stubby Hyd. Workholder Assembly $745.00
* C-1000-1 Double Jaw Workholder Assembly $1608.00
1 8866-4858 Elbow $3.00
2 160771-1 Air Cylinder $89.50
2H 781238-3 / 52-20053-00 Hydraulic Cylinder $219.50
3 750154-3 / P07-23030-63 Upper Jaw $89.50
4 150232-1 Carbide Insert $3.90
5   Split Pin $0.85
6 750161 / P07-2302-66 Pivot Arm $144.00
7 170453-2 Lower Jaw Knurled $14.75
7H 170453-2HD Lower Jaw Knurled-Heavy Duty $40.00
8 6624-1021 Soc. Head Flat Screw (m5x12) $0.35
9 148791-1 Carbide Insert (Knurled Face) $8.50
10 750155-3 / P07-23040-64 Lower Jaw (Carbide) $22.00
11 6663-1029 Dowel (M6x70) $2.75
12 771488-3 Lock Bolt (m18x1.5) $2.75
13 9999-5000 Bushing $7.00
14 *** Safety Cam $110.00
15 9999-5010 Cap Head Screw (m5x10) $0.35
16   Clamp Bar $60.00
17   Slider $ P.O.R.
18   Spring $2.00
19 WH7JCP4 Push Rod (1/4"x1-3/4") $2.75
20   Shoulder Bolt $4.15
21   Clamp Levers
6630-1067-1000 m10x30 - C-1000 $16.50
6630-1067-2000 m10x58 - C-2000 $16.50
6630-1067-3000 m10x56 - C-3000 $16.50
22   Fitting (Pneumatic) $5.50
22H   Fitting Hydraulic (2HP1/4) $39.00
23   Hose Assembly $18.50
23H   Hose - Hydraulic (W/O/ Fittings) $22.00
24 Set Screw Brass Tip $0.85
  WRK-1000 Workholder Replacement Kit  239.25

Wiedemann RA-41 / RA-41 P Workholder Assembly

**Made in the USA!**

Item # Part #

Description

 Price
1 133314-1 Right Hand Guide $183.00
2 133313-1 Left Hand Guide $173.00
3   Key $ P.O.R.
4 133315-1B Adjustment Plate $17.50
5   Socket Head Cap Screw $0.45
6   Hex Nut $0.35
7   Lock Washer $0.35
8   Socket Set Screw $0.45
9   Socket Head Cap Screw $0.45
10   Dowel Pin $ P.O.R.
11   Slide $206.00
12 133198-1A Tee Bar (Replaces T Nuts) $14.25
13 133321-1A Spring Clip $11.50
14   Spring $3.00
15 133321-1C Upper Pin $6.50
16 133321-1D Lower Pin $3.25
17   Hex Nut $0.35
18 88821-2208 Socket Head Cap Screw (6/32" x 1/2") $0.45
19   Key $ P.O.R.
20 121246-1P Bearing Blocks (2 Required) $20.00
21 8863-1617 Bearing Block Pin (3/16" x 1-1/4") $3.00
22 133526-1 Pivot Arm $90.00
23 133320-1 Wear Plate $3.50
24 137954-1P Wear Plate Pin (1/16" x 1-3/4") $2.50
25 137954-1N Pivot Arm Pin $3.00
26 133316-2 Upper Jaw (9/64" Max. Material) $63.00
26a 134311-2 Upper Jaw (1/4" Max. Material) $125.00
28 133317-1 Lower Jaw (Knurled) $21.00
29 8824-1011 Flat Head Soc. Screws 6-32 x 1/4 (4 Required) $.56
30   Pin $ P.O.R.
31   Socket Head Cap Screws $0.45
32 133318-1A Clamp Pivot W/Brass tip set screw $21.00
34   Set Screw $0.35
35 133319-1 Clamp Lever $31.50
36 133200-2 Complete Workholder Assembly $650.00
  133200-2ST Complete Stubby Workholder Assembly $375.00
  123013-9 Double Jaw Workholder Assembly $1,575.00
  133312-1 Back Bar $ P.O.R.
