Harrison Industrial Equipment Co., Inc.

We proudly Offer the following Pre Owned Equipment

(click on the image for more information on the machine)

1) Pre Owned Amada FBDIII 8025FS Press Brake Installed in 1999!

Pre Owned Amada FBDIII 8025FS Press Brake Installed in 1999!

Pre Owned Amada FBDIII 8025FS Press Brake Installed in 1999!

Pre Owned Amada FBDIII 8025FS Press Brake Installed in 1999!

E-Mail

1) Pre Owned DiAcro Press Brake with Automec CNC 99 Backgauge)

  E-Mail

Air Compressor

INGERSOLL RAND

ROTARY RECIPROCATION COMPRESSOR

COMPRESSOR MODEL  ------------------- SSR-XFE300

CAPACITY -------------------------------------      1506 CFM

RATED OPERATION PRESSURE -------         100PSIG

MAX. DISCHARGE PRESSURE ----------        103PSIG

MAX. MODULATE PRESSURE -----------       110 PSIG

NOMINAL DRIVE MOTOR ----------------         300H.P.

NOMINAL FAN MOTOR --------------------        15.0H.P.

TOTAL PACKAGE AMPS ------------------                 391

VOLTS -------------------------------------------                 460

PHASE/HERTZ --------------------------------                3/60

CONTROL VOLTAGE -----------------------                 120

SERIAL NUMBER ----------------------------E1381U96046

CONTACTOR AMP. RATING -------------                 300

ASSEMBLY AMP. RATING ----------------                 520

LOCKED ROTOR AMP. RATING OF ASSY.        6600

CNC Turret Presses

Wiedemann C-2000

1) Pre Owned Wiedemann W-2040 (SOLD)





WIEDEMANN W-2040 CNC TURRET PRESS 1982  UNDER POWER IN DALLAS

EXCELLENT CONDITION ****   MUST MOVE QUICKLY

  1) Pre Owned Wiedemann C-2000 with Fanuc OP Control
Wiedemann C-2000

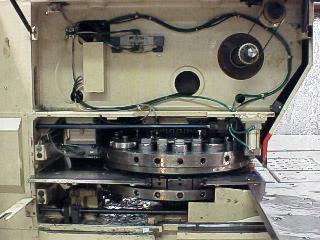

22 Station Turret With Auto IndexFanuc OP Control
Wiedemann C-2000 CNC Turret Punch Press

SPECIFICATIONS

Tonnage 22 Tons
Throat 40"
Table Capacity 40" x 50"
Punching Capacity 1/4" crs
Tooling Style 114 (A/I 112)
Hits Per Minute 200 HPM on 1" centers
Nibbling 420 SPM
Turret Stations 22 with 2 Auto index stations
E-Mail

1) Pre Owned Wiedemann C-1000

Wiedemann C-1000 CNC Turret Punch Press

SPECIFICATIONS

* Punching Capacity:
3" Dia. in 12 ga M.S. / .8" Dia. in .250 M.S.
*Press Drive Motor:
5 HP
*Throat Depth:
41.3"
*Table Travel:
X Axis:40.5"Y Axis:40.5"
*Table Sheet Capacity:
40" x 40" before repositioning
40" x 80" with (1) repositioning
Longer with Multiple repositions
*Maximum Sheet Weight:
110 lbs.
*Clearance - stripper to die:
.875"(22mm)
*Turret Capacity:
20 Stations
*Turret Rotation:
30 RPM
*Tooling Style:
Wiedemann Style 114
*Maximum Table Traverse Speed:
XAxis - 1970"/min.
YAxis- 1970”/min.
*Hit Rates:
Continuous nibbling mode - .200" moves 350 SPM
Axis Move Hits/Min.
1"200
3"155
6"130
10"100
*CNC Control:
Fanuc
*Hydraulic
Clutch & Brake
*Foundation
None Required
E-Mail


If you are looking for a pre-owned equipment
and would like more detailed information send us an : E-Mail
