 Rebar Benders

We offer a couple of lines of heavy duty benders from stand alone machine to fully automatic stirrup, ring and spiral bending, and double bending systems.  We also offer bending attachments, tooling, and parts!

Econoline Rebar Bending Machine

Affordable Dependability

GMS Logo

Quick Navigate :
Rebar Benders
Portable Cutters
Heavy Duty Rebar Shears
Mesh Bender
CNC Stirrup Bender
Rebar Size and Dimensions

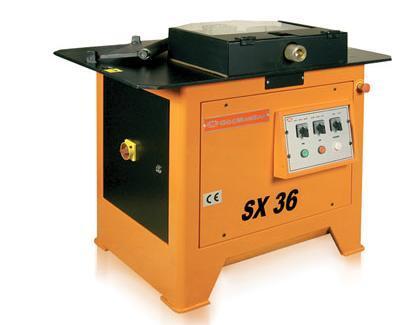

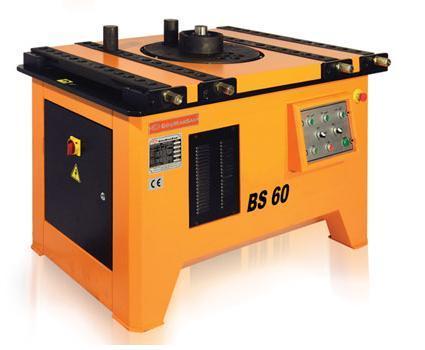

GMS BS36 Rebar BenderGMS SX36 Rebar Spiral BenderGMS BS60 Rebar Bender

Model

Max Capacity Grade 60

Power Requirement

HP

Weight

GMS B 26

#7

230/3/60

2

650 lbs.

GMS BS 36

#9

230/3/60

4

1100 lbs.

GMS BS 50

#11

230/3/60

7.5

1600 lbs.

GMS BS 60

#14

230/3/60

10

2000 lbs.

GMS Spiral Bender SX 36

#9

230/3/60

3

675 lbs.

Econoline rebar benders have an efficient electro-mechanical drive with a simple pin selection of bend angles.  Three different bend angles can be preset and selected by the operator.

We also offer Taeyeon B&C Series Rebar Equipment.

BNC Logo

From their line of Portable cutters and small sized benders up to there rebar bending semi automatic lines, B&C Taeyeon has a solution for you.

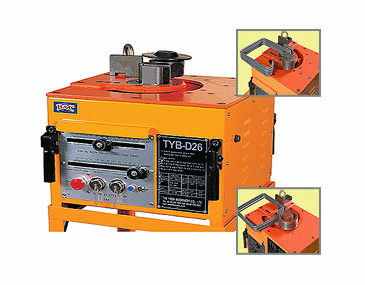

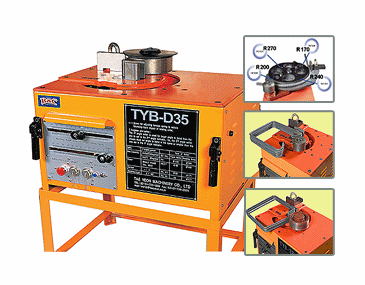

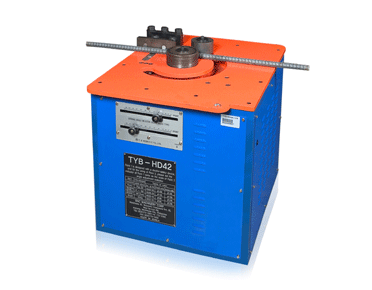

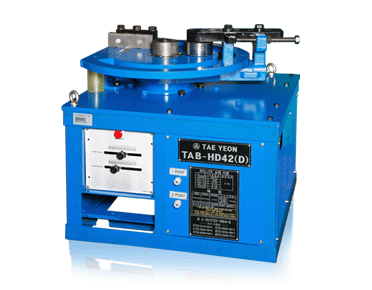

Taeyeon TYB-D26 Taeyeon TYB-D35 Taeyeon TYB-HD42
TYB-D26 Mini Bar Bender TYB-D35 General Bender TYB-HD42A Heavy Duty Bender
Bending Capacity HD10~25 (.375"-1.00")
Bending Angle 180 deg. / 5 Seconds
Motor 2.1kw
Power Single Phase (110v or 220v)
Weight 75kg
Bending Capacity HD10~32 (.375"-1.27")
Bending Angle 180 deg. / 5 Seconds
Motor 2.1 kw (2 Motors)
Power Single Phase (110v or 220v)
Weight 180kg
Bending Capacity HD10~42 (.375"-1.65")
Bending Angle 180 deg. / 5 Seconds
Motor 3.7kw / 5hp
Power 3 Phase
Weight 710kg

For more information please e-mail us!

E-Mail

Green Bar

 Rebar Shears

We offer a complete line of heavy duty rebar shearing machines from stand alone machine to fully automatic straightening and cutting machines.

We also offer parts and blades!

Econoline Rebar Shearing Machines

Affordable Dependability

GMS Logo

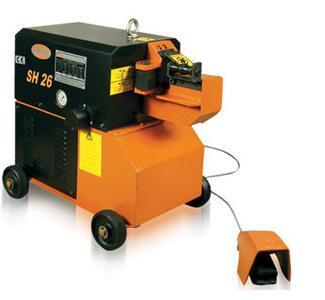

GMS SH26 Hydraulic Rebar ShearGMS SH42 Hydraulic Rebar Shear

Econoline Rebar Shears are hydraulically powered for safe and easy use.

Model

Max. Capacity Grade 60

Power Requirement

HP

Weight

GMS SH26

#7

230/3/60

4

400 lbs.

GMS SH36

#9

230/3/60

10

1300 lbs.

GMS SH42

#11

230/3/60

10

1300 lbs.

GMS SH60

#14

230/3/60

10

2150 lbs.



We also offer B&C Taeyeon Rebar Equipment.

BNC Logo

From their line of Portable cutters and small sized benders up to there rebar bending semi automatic lines, B&C Taeyeon has a solution for you.

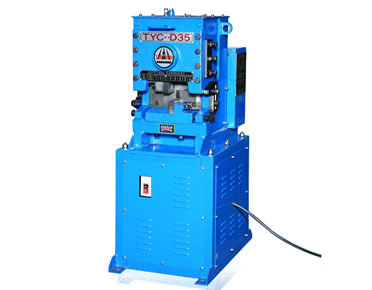

Taeyeon TYC-D35  Taeyeon TYC-D35

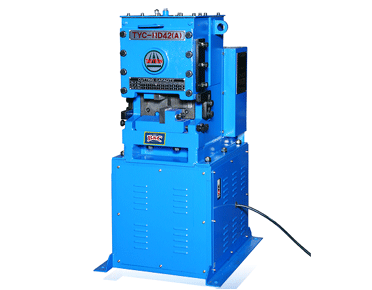

TYC-D35 General Type Cutter TYC-HD42A Heavy Duty Cutter
Cutting Capacity HD32 / #10 (32mm/1.27”)
Motor AC 3KW/19A
Power

Single Phase AC110-220V, 50/60hz

3 Phase AC 220-415V 50/60hz

Weight 616kg / 1,355 lbs.
Dimensions (L) 800 (W) 520 (H) 1262
Cutting Capacity HD42 / #11(42mm /1.65”)
Motor AC 3.7kw /5hp
Power

3 Phase AC 220-415V

50/60hz

Weight 836kg / 1839 lbs.
Dimensions (L) 838 (W) 688 (H) 1313

Bars to Cut at a Time Bars to Cut at a Time
Bar Thickness HD 32~22 HD19 HD16 HD13 HD10
Pieces 1 2 3 4 6
Bar Thickness HD 32~22 HD29 HD22 HD16 HD10
Pieces 1 1 2 6 9

For more information please e-mail us!

E-Mail

New!Shear blade Request for Quote PDF New!

Green Bar

Portable Rebar Shears

BNC Logo

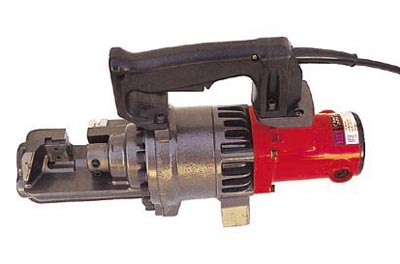

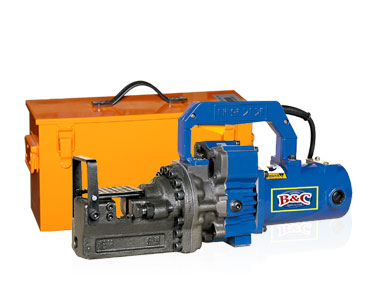

TYC-HD19A

TYC-HD-19A

Portable Cutter

Max. Cutting Capacity  #6
Power Single Phase 110V or 220V
Weight  13Kg / 28Lbs.
Dimensions (L) 16.8" (W) 4.13" (H) 7.79"

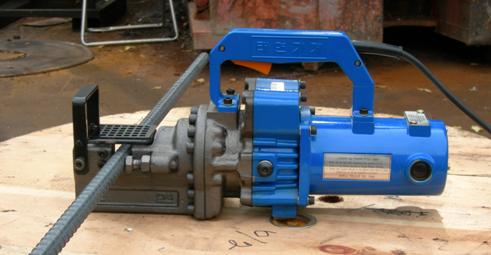

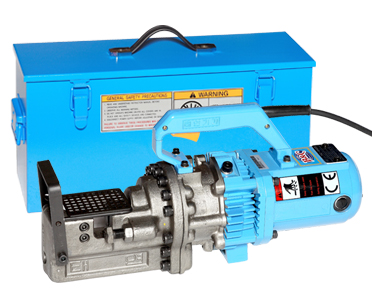

TYC-NHD25

TYC-NHD25

Portable Cutter

Max. Cutting Capacity

 #8

Power

Single Phase 110V

Weight

52Lbs.

Dimensions

(L) 17" (W) 4" (H) 8"

For more information please e-mail us!

E-Mail

Green Bar

Mesh Benders

GMS Logo

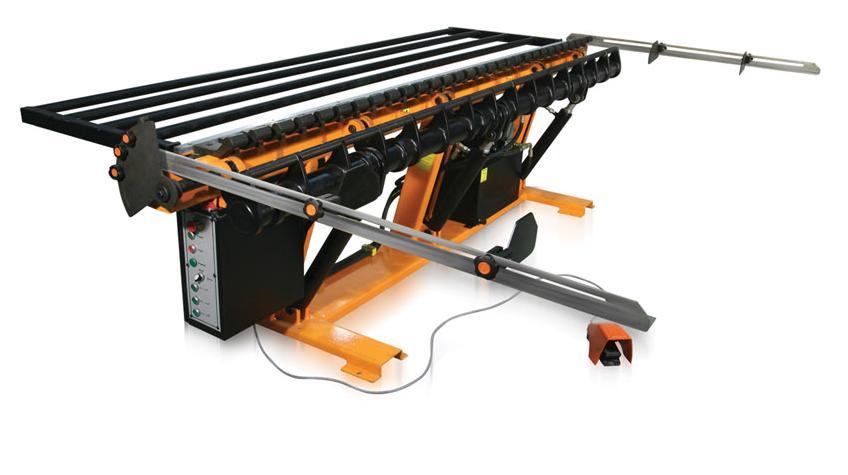

The GMS HB12 Mesh Bender can bend 10mm dia. Wire.

GMS Mesh Bender

For more information please e-mail us!

E-Mail

Green Bar

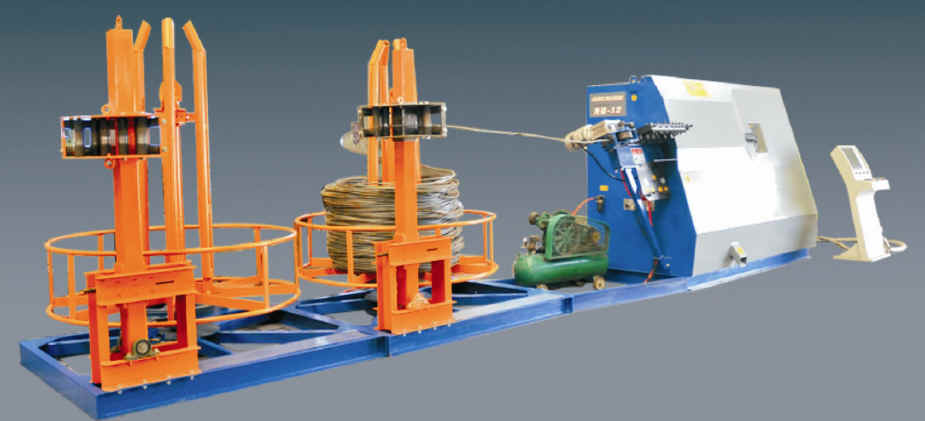

TJK  Servo-Driven  Automatic Stirrup Bending Machine with Cutoff

TJK  Servo-Driven Automatic Stirrup Bender

We offer CNC Stirrip Bending with cuttoff for up to 16mm bar.  See the following video to see the machine in action.

For more information please e-mail us!

E-Mail

Green Bar

Rebar Size and Dimensions

Bar designation number Nominal diameter
in inches
Metric
designation number
#3 0.375 10
#4 0.500 13
#5 0.625 16
#6 0.750 19
#7 0.875 22
#8 1.000 25
#9 1.128 29
#10 1.270 32
#11 1.410 36
#14 1.693 43
#18 2.257 57
