AUTO-SERT AS-7.5 Hardware Insertion Presses
STANDARD FEATURES / BENEFITS

All Machines are Made in the USA

RIGID CONSTRUCTION:  2" thick steel center mainframe.

20" THROAT DEPTH VERTICALLY AND HORIZONTALLY:   Design allows less restriction of movement around the ram.
*(Larger throat depth of 36" is available on 7.5 and 10 tons models.  Ask for pricing/delivery.)

QUICK CHANGE TOOLING:  Minimal tools are needed for tooling change.

EASY ACCESS TO ALL MACHINE CONTROLS:  Controls are convenient to operators from standing or sitting positions.  Increased operator awareness of control panel indications.  Less operator fatigue.

UNIFORM HYDRAULIC PRESSURE BY DESIGN:  No variation in pressure from heat build-up.  Hardware is installed uniformly in thin, soft aluminum parts at a low-pressure range down to 350 lbs. force.  To install 1/4-20 studs in stainless steel, the Auto-Sert AS-7.5 press has the capacity- with power to spare.

RELIABLE SAFETY SYSTEM: The safety system is internally monitored by a microcontroller.  Very sensitive pressure sensing device used, plus a 1/4" window of safety before full tonnage is applied by the press in manual operation.  The operator can work faster with confidence.

DIGITAL COUNTDOWN COUNTER FOR FASTENERS:  Keeps track of the number of hardware in each chassis or part, with an automatic reset feature.  The operator is alerted to hardware forgotten in part.  Better quality control.

DIGITAL COUNTER FOR PART PRODUCTION:  Keeps track of part production to save operator time: automatic record.  Has a reset button.

AUTO-SERT AS-7.5 PRESS SPECIFICATIONS

TONNAGE CAPACITY:  Minimum 350 lbs. - Maximum 15,000 lbs (7.5 tons)

THROAT DEPTH:   20 inches (Also available in 36 inches)

RAM STROKE:   6 inches

HYDRAULIC PRESSURE: Minimum 40 PSI - Maximum 3,000 PSI

RESERVOIR CAPACITY:  12 gallons of hydraulic oil (Mobil DTE 26 or equivalent)

ELECTRICAL POWER:  208, 230, or 460 volts, 3 phase

DIMENSIONS:      Height  -  76 inches
                              Width -  36 inches
                              Depth   -  45 inches

WEIGHT:              1,600 lbs.

Need parts or tooling for your Auto-Sert?

Please e-mail us for a Quote

E-Mail

THE FOUR COMPONENTS OF THE SHUTTLE SYSTEM:

1. Shuttle system base unit,  including air-operated vacuum generator and front-mounted base with air cylinder and slide arrangement

2. A change-over set consists of paddles, tube holder, and lower locating tool exclusive to the shuttle system

3. For each of the above change-over set sizes, an escapement unit must be purchased

4. A vacuum anvil will also be required as follows:

                        3/8” anvil to get into hard-to-reach places or 5/8” anvil for hardware with larger heads to keep material flatter

*Special anvil for Standoff or Nut with through-hole.  One is needed for each diameter of Standoff & Nut



Touch Screen
Auto-Sert Touch Screen
Hardware Press

Auto-Sert AS-7.5
 Auto-Sert AS-7.5 Ton Hardware Press

Shuttle System
Auto-Sert's Shuttle System

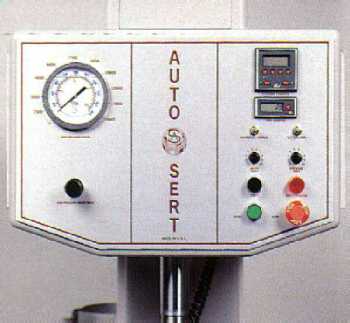

 Operator Control Panel
Operator Controls

Programmable Controller
Programmable Controller


Auto-Sert AS 7.5 36"
36" Throat Machine

 Auto-Sert for cost-effective & productive Hardware Insertion
