Harrison Industrial Equipment Co., Inc.

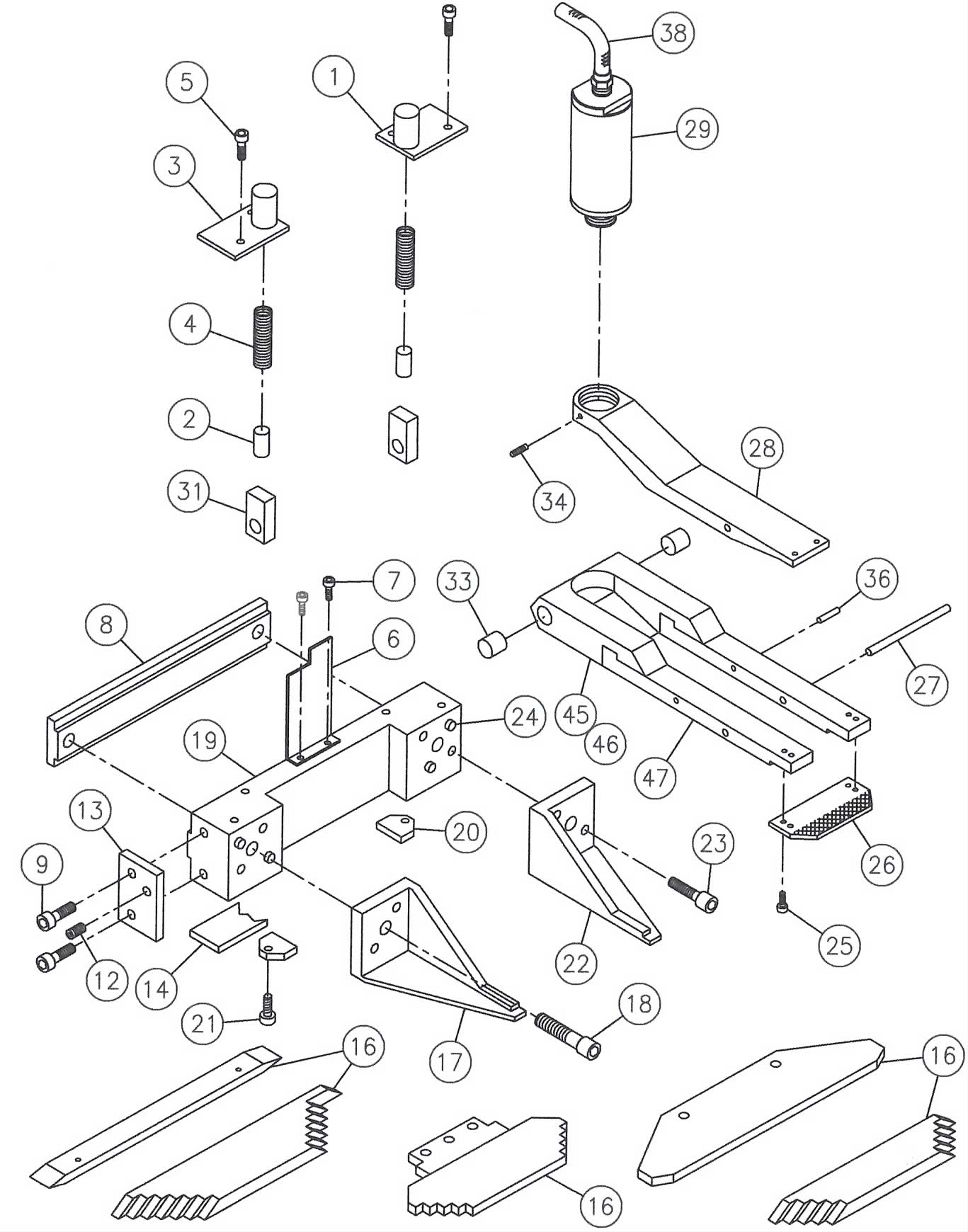

Wiedemann Clamps Component parts for
S-40, A-30, W-20, W-30, W-45

Dwg  No. Part No. Description Price
00 MH5ACO Complete Assembly 1275.00
00 MH5RJA Jaw Pack/Wear Plate 455.00
00 MH4RJA Jaw Pack (Incl. #26,27,28,45) 435.00
01 MH5ACP-01 Retainer 55.00
02 MH5ACP-05 Dowel 3.00
03 MH5ACP-03 Retainer 55.00
04 MH5ACP-04 Spring 5.00
05 MHSCS0616 Screw CS, Pkg of 10 6.00
06 MH5ACP-06 Pointer 6.60
08 MH5ACP-08 T-Bar 28.00
09 MHSCS0820 Screw CS, Pkg of 10 6.00
13 MH5ACP-13 Side Plate 28.00
14 MH5ACP-14 Spacer  **No Longer Available** 0.00
16 MH5ACP-40 Cam with Steps  **No Longer Available** 0.00
16 MH5ACP-41 Cam Bevel Step  **No Longer Available** 0.00
16 MH5ACP-42 Cam Bevel Step  **No Longer Available** 0.00
16 MH5ACP-43 Cam Bevel Step  **No Longer Available** 0.00
17 MH5ACP-17 Guide, RH 250.00
18 MHSCS1273 Screw CS, (3/8 x 2-1/4) 3.00
19 MH5ACP-19 Slide 420.00
20 MH5ACP-20 Bottom Plate 20.00
21 MHSFS0816 Screw FH, Pkg of 10 6.00
22 MH5ACP-22 Guide LH 250.00
23 MHSCS0832 Screw CS, (1/4-20 x 1) 6.00
25 MHSFS0616 Screw FH, Pkg of 10 6.00
26 MH4ALJ Lower Jaw/Knurl (Incl. Screws) 34.00
26 MH4CLJ Lower Jaw/Carbide (Incl. Screws) 75.00
27 MH5ACP-27 Dowel 8.00
28 MH4AUJ Upper Jaw (Incl. Pin) 185.00
29 MH5ACP-29 Air Cylinder 395.00
31 MH5ACP-34 Bushing 59.00
33 MH5ACP-33 Pivot Pin 3.00
34 MHSSS0608 Screw SS Pkg of 10 6.00
36 MH5ACP-36 Roll Pin, Pkg of 10 6.00
38 MH5ACP-38 Air Hose 54.00
45 MH4APA Pivot Arm 255.00
45 MH4RPA Replaceable Pivot Arm 245.00
45 MH5RPA Replaceable Pivot Arm (Incl. #98) 270.00
46 MH4RCP-46 Body for MH4RPA 150.00
47 MH4RCP-47 Legs 50.00
47 MH5RCP-47 Legs for Wear Plates 65.00
98 MH5ACP-32 Wear Plates 20.00

*Prices Subject to change 10/02/2017
