Harrison Industrial Equipment Co., Inc.

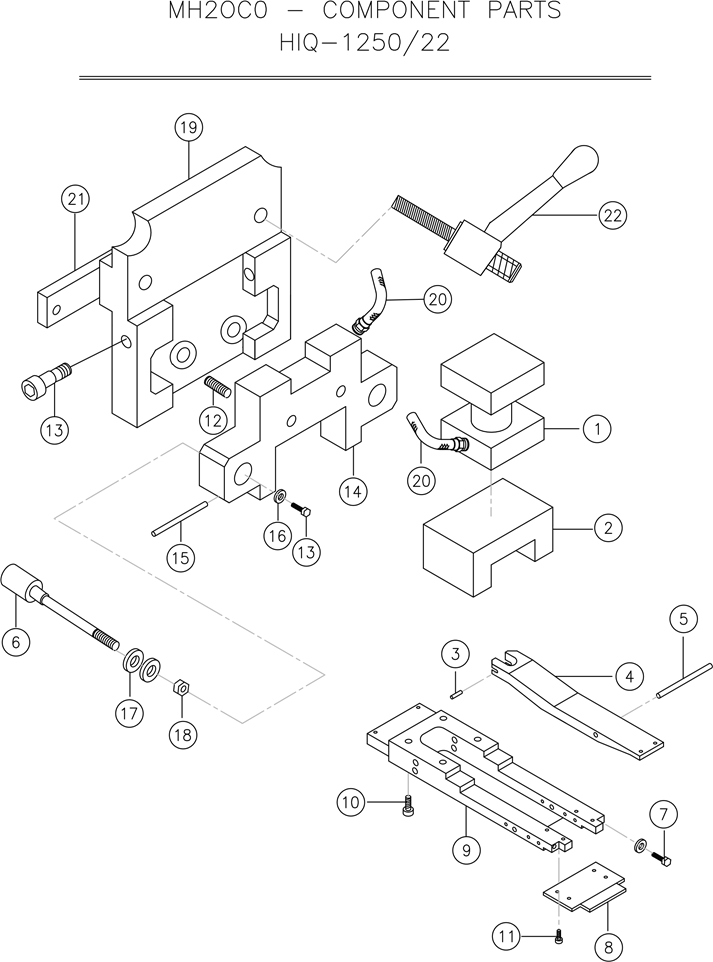

Nisshinbo® HIQ-1250/22 Clamp Parts

Dwg  No. Part No. Description Price
00 MH2OCO Complete Assembly 3600.00
00 MH2OJA Jaw Pack (Incl. #4,5,2-#7,8,9) 870.00
01 MH1OCP-29 Air Cylinder 420.00
02 MH2OCP-29B Air Cylinder Adapter 240.00
03 MH6MCP-36 Dowel Pin 6.00
04 MH2OUJ Clamp Lever / 30 Tools 290.00
05 MH6MCP-27 Pin 6.00
06 MH2OCP-28 Guide Piston Kit/One Only/Two req. 290.00
07 MH3OCP-32 Fitting Block / Washer 38.00
08 MH2OPA Fitting Plate 94.00
09 MH2OPA Clamp Body / 30 Tools 500.00
10 MHSCS08X20 Screw, AH Pkg of 10 12.00
11 MH7ARP-21 Screw FH Pkg of 10 10.00
12 MH2OCP-04 Spring 6.00
13 MH2MCP-30 Shoulder Bolt 12.00
14 MH2OCP-22 Support (Incl. 2-#6) 1250.00
15 MH2OCP-34 Pin 15.00
16 MH3OCP-04 Coned Disc Spring Set 49.00
17 MH3OCP-04A Coned Disc Spring Set 65.00
18 MHHHN06X Nut/6mm Pkg of 10 6.00
19 MH2OCP-19 Clamper Support 1400.00
20 MH2OCP-38 Hose Assembly 65.00
21 MH3OCP-08 Lock Nut / T-Bar 100.00
22 MH2OCP-18 Clamp Lever 76.00

Prices Subject to change 06/07/2017

Nisshinbo HIQ-1250/22
