Harrison Industrial Equipment Co., Inc.

Finn Power TP-2520-2015-4025

Dwg  No. Part No. Description Price
00 MH2FCO Clamp 1 4000.00
00 MH2FCO-2 Clamp 2 4000.00
00 MH2FCO-3 Clamp 3 4000.00
1 MH2FCP-19 Ram (With Bushing) 1500.00
2 MH2FCP-29L Locking Cylinder Assembly 600.00
3 MH2FCP-29 Cylinder Assembly 660.00
4 MH2FCP-34 Bearing Assembly 650.00
5 MH2FCP-36 Coupling Link 10.00
6 MH2FUJ Upper Jaw 175.00
7 MH2FPA Lower Clamp 1, 2, or 3 335.00
8 MH2FUB Urethane Boot 30.00
10 MH2FCP-04DS Detector Sp. Spring 8.00
11 MH2FCP-DS Detector Spindle 175.00
12 MH2FCP-32 Plate 2 18.00
13 MH2FCP-32S Plate 1 18.00
14 MH2FLJ Bottom Plate 1, 2, or 3 75.00
15 MH2FCP-51 Holder for Limit Switch 56.00
16 MH2FCP-DSMS Micro Switch 50.00
17 MH2FCP-37P Spring Cotter/Roll Pin 6.00
18 MH2FCP-FP Front Piece 52.00
19 MH2FCP-LP Locking Piece 60.00
20 MHFCP-SB Slide Bearing 35.00
21 MH2FCP-BP Back Piece 49.00
22 MH2FCP-03 Drawbar 65.00
23 MH2FCP-SP Stop Plate 65.00
24 MH2FCP-08 Adapter Plate 65.00
25 MHSCS2X10 Screw pkg. of 10 9.00
26 MH2FCP-08B Adapter Plate 65.00
27 MH2FCP-LS Limit Screw 25.00
28 MH2FCP-53 Wear Insert for Our Clamps 160.00
29 MH2FCP-54 Cover 95.00
30 MH2FCP-20 Cover Bottom Plate 80.00
31 MH2FCP-04 Spring 20.00
33 MH2FCP-52 Hold Down Pad *No Longer Available* 0.00
34 MH2FBP-3.5P Bearing Plate Pin 80.00
35 MH2FBP-3.5 Bearing Plate 224.00
36 MH2FDP Detector Pin 49.00
44 MHSFS04X10 Screw Pkg. of 10 10.00
45 MHSCS05X12 Screw Pkg. of 10 8.00
46 MHSCS05X16 Screw Pkg. of 10 8.00
47 MHSCS04X08 Screw Pkg. of 10 6.00
48 MH2FCP-27 Dowel for Our Clamp 6.00
49 MHSCS08x60 Screw AH 6.00
50 MH6MCP-23 Screw 8.00

Prices Subject to change 06/07/2017

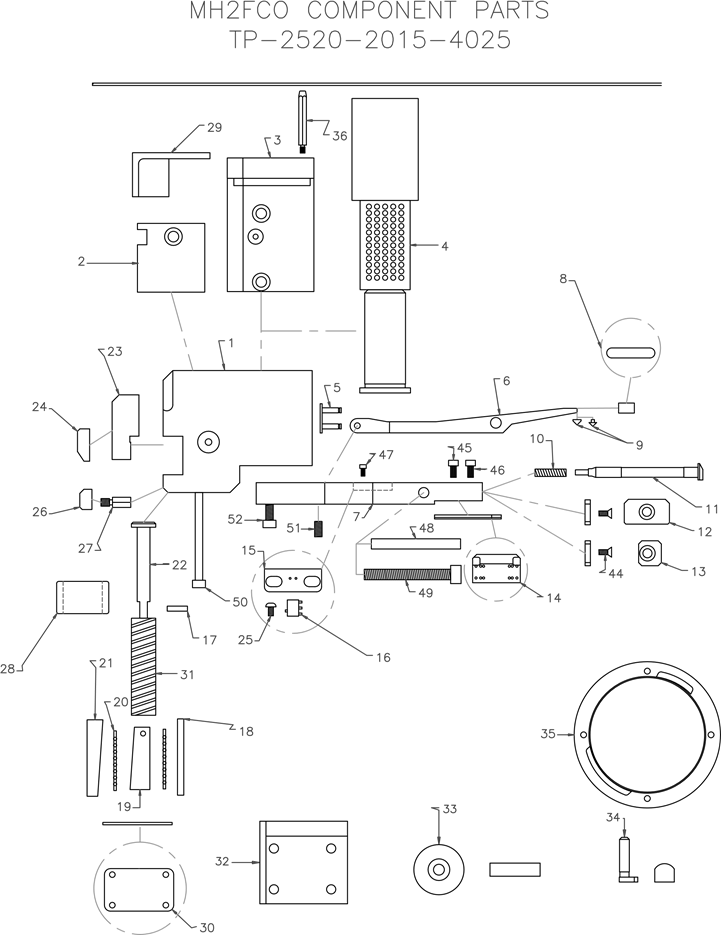

Finn Power Clamp
